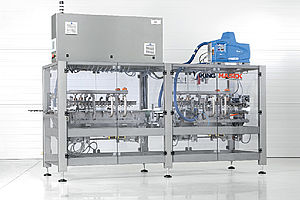

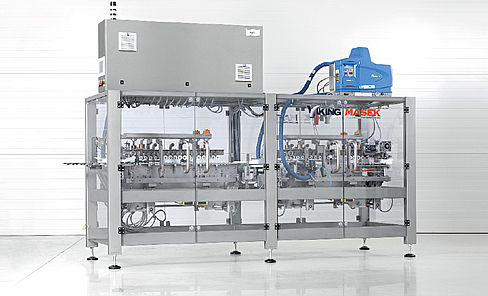

CLM

VikingMasek´s CLM machines are a family of carton closing machines. We offer straight-line or right-angle units to close one-, two- or three-flap cartons. The unique turning mechanism provides gentle handling of the cartons and the products inside. The different styles CLM machines provide plant layout flexibility and match the required customer´s speed.

One, two or three flap, carton closing machine are designed to handle all types of board. Whether manufactured from thin or heavy gauge chipboard or corrugated micro fluted board finished with high quality printing, the CLM carton closers will produce perfectly formed, square and unblemished cartons that are secure and strong for shipping yet suitable for shelf or freezer display.

Speed
max. 200 bags/min
Fill a request form

Machine description

One, two or three flap, carton closing machine are designed to handle all types of board. Whether manufactured from thin or heavy gauge chipboard or corrugated micro fluted board finished with high quality printing, the CLM carton closers will produce perfectly formed, square and unblemished cartons that are secure and strong for shipping yet suitable for shelf or freezer display.

Machine features



  • One, two or three flap closing configuration
  • Lock-style, hot melt or hot air systems
  • Easy format change-over
  • Driven infeed to adapt to random carton flow
  • Servo drives
  • Rugged stailess steel construction
  • Jogging control
  • Safety guarding
  • Off-the-shelf components
  • Siemens or Allen Bradley controls
  • IP54
  • Excellent accessibility
  • Speed and glue adjustment throught the HMI
  • Gentle carton rotation

    •

Topload



  • Various styles of infeed/outfeed conveyors
  • Straight-line or right-angled contruction
  • Damaged carton rejection
  • Different frame sizes to accomodate large carton range
  • Remote control
  • Special electrics and voltages
  • IP65 washdown construction

    •

  • Max. speed: 200
  • Max. carton dimensions (w × d × h): 300 × 300 × 100
  • Min. carton dimensions (w × d × h): 50 × 100 × 25
  • Weight: dle konfigurace
  • Power supply: dle konfigurace
  • Air pressure: 6
  • Air consumption: dle konfigurace
  • Air consumption: 200
  • Carton dimensions: 300 × 400 × 200
  • Carton dimensions min.: 50 × 80 × 25
