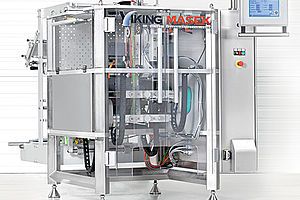

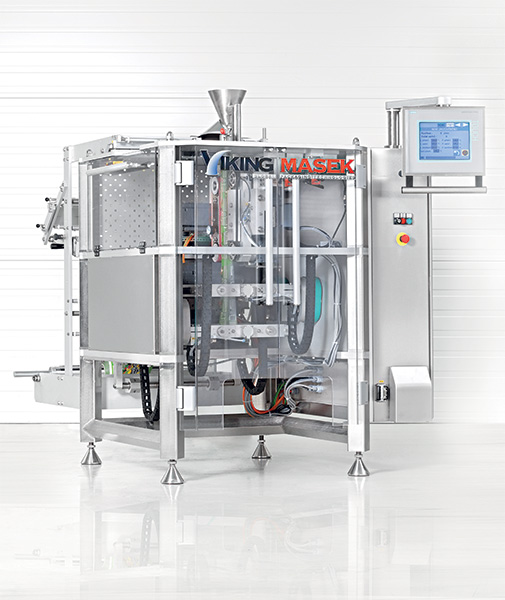

Continuous motion bagmaker Velocity

World´s fastest continuous motion vffs machine, with bag width up to 250 (300) mm.

VikingMasek´s continuous motion bagmaker Velocity 250 (300) is capable of true production speeds up to 250+ bpm. The unique center mounted filling tube and natural counterbalanced sealing profile are designed to provide vibration free, extremely smooth operation at all speeds. Our color graphic operator interface coupled with "off-the-shelf" PLC controls insures industry leading ease-of use and the highest reliability. The Velocity is also extremely versatile, handling package sizes up to 300 mm (12") wide and multiple package styles.

Speed
max. 300 bags/min
Bag size
max. 250 (300) x 1 000 mm
min. 50 x 90 mm
Fill a request form

Machine description

VikingMasek´s continuous motion bagmaker Velocity 250 (300) is capable of true production speeds up to 250+ bpm. The unique center mounted filling tube and natural counterbalanced sealing profile are designed to provide vibration free, extremely smooth operation at all speeds. Our color graphic operator interface coupled with "off-the-shelf" PLC controls insures industry leading ease-of use and the highest reliability. The Velocity is also extremely versatile, handling package sizes up to 300 mm (12") wide and multiple package styles.

Machine features



  • Robust stainless steel frame
  • Siemens or Allen Bradley control system
  • Servo jaw actuation
  • Patented, dual-jaws technology
  • Vacuum pull belt
  • Small footprint
  • Short film path
  • Minimal maintenance requirements
  • Film unwind with tension control
  • Product stagers
  • Bag deflators
  • Photo eye for bag length controls
  • Runs most film structures
  • Storage for 100 product recipes
  • Quick film splice table
  • No tool change-over
  • Off-the-shelf components
  • Jaw jam detection

    •

Pillow
Euroslot



  • Gusset assembly
  • Washdown IP66 construction
  • Integration with variety of fillers,
  • Printers, metal detectors, label applicators, checkweighers
  • In-feed and take-away conveyors
  • Gas flush
  • Tear notch
  • Round or Euro hole punch
  • End-seal cooling air
  • Promotion strip applicator
  • Chain-bag capability

    •

  • Max. speed: 300
  • Bag width: 50–300 mm (250 mm)
  • Bag length: max. 1 000 mm
  • Weight: 900
  • Power supply: 6
  • Air pressure: 6
  • Air consumption: 0,2
  • Air consumption: 300
  • Bag size max.: 250 (300) x 1 000
  • Bag size min.: 50 x 90
